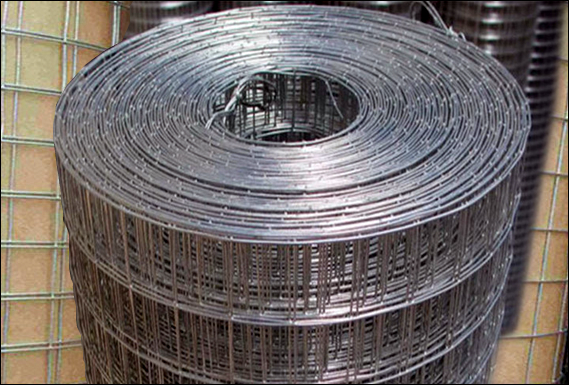

Galvanized Mesh Fence:
3/4X3/4 inch x 20 gauge hardware cloth galvanized fencing, for zoo and general perimeter fencing uses, finish can be pvc coated.

Tree Fencing Light Type Welded Mesh
¼” galvanized hardware cloth, 26 gauge, for tree guard, in rolls

Galvanised Welded Mesh for Rabbit Fencing
Electro Galvanized welded wire fabric: 1" x 1/2", Wire Gauge 16, for rabbit hutches and fencing uses

Welded Chicken Fencing Mesh Panels
Galvanized wire netting chicken mesh, to New Zealand: 1", Wire Gauge 14

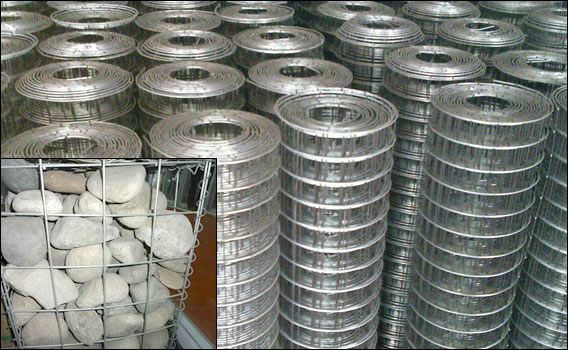

Welded Pre Galvanised Wire Mesh for Gabions
Galfan coated welded wire in rolls, 84' x 4' x 4' x 20ft in both 10g and 8g.
Material: Galfan coated galvanized wire
Drawing reference in PDF

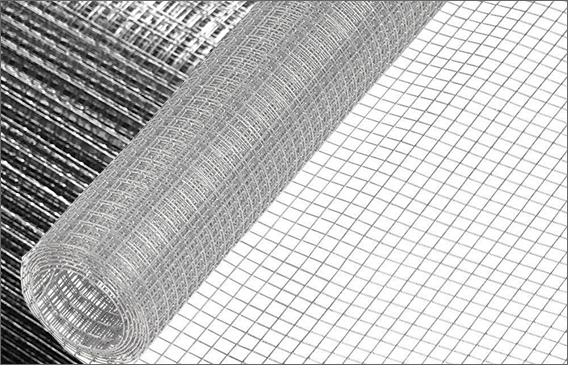

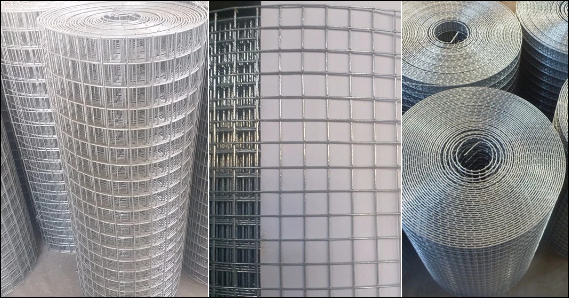

Welded Mesh Galvanized Hardware Cloth

Galvanized Mesh Hardware Cloth of welded wire type, in rolls and panels.

Weld Mesh Material:
Carbon steel wire, stainless steel or plastic coated iron wire.

Weld Processing:
A wire mesh welded construction comprises an array of line wires, an array of cross wires overlying said array of line wires and a barrier material disposed between the array of line wires and the array of cross welded wires. The array of line wires is joined to said array of cross wires at the points of intersection and through the barrier material, thus securing the barrier material between the array of line wires and the array of cross wires.

Typical Sizes:
5/8" x 5/8", Wire Gauge 18,19,20,21;
3/4" x 3/4", Wire Gauge 16,17,18,19,20,21;
1" x 1/2", Wire Gauge 16,17,18,19,20,21;
1-1/2" x 1-1/2", Wire Gauge 14,15,16,17,18,19;
1" x 2", Wire Gauge 14,15,16;
2" x 2", 12,13,14,15,16

Main Sizes Exported to USA:
Supplied in 48 inch x 100 feet Rolls:
4-mesh (1/4-inch mesh) x 20 gauge wire, in 48-inch roll width
4-mesh (1/4-inch mesh) x 23 gauge wire, in 48-inch roll width
8 mesh (1/8 inch mesh ) x 27 gauge wire, in  48 inch roll width
2 mesh hardware cloth
½" opening sq galv mesh welded hardware cloth
19 gauge galvanized hardware cloth
19 GA, 1/2" Hardware Cloth, Galvanized (82.06 lbs/roll), or to be further vinyl coated in black colour
1/4-inch galvanized mesh hardware cloth
Galvanized hardware cloth – 14, 16 and 18ga., to United States

Supplied in roll size: 36 inch width
¼” galvanized hardware cloth,  24 gauge
¼” galvanized hardware cloth,  26 gauge
3/8” x 3/8” 21 Gauge  galvanized welded wire mesh, to USA

Packing: The hardware cloth is wrapped in waterproof paper in rolls. Then in cartons or in pallet.

HuaHai Hardware Cloth Factory

HuaHai makes hardware cloth for
worldwide users
we export industrial wire cloth products to USA, Europe, Australia and other countries, our products are for fencing, building, screening, filtering and various industrial uses.
