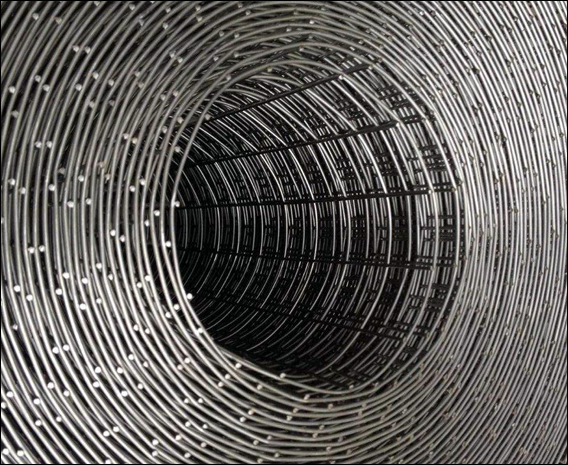

Hot Dipped Galvanised Welded Steel Mesh for Concrete Building, 100 mm x 100 mm Opening
Constructional mesh, galvanized, with the following size: 1200 mm x 800 mm panel, Mesh size 100mm x 100mm, wire gauge 2.5mm. Supplied to Norway

in Scandinavia for construction projects

Square Hole Hot Dipped Galvanized Wire Cloth in 1/4 inch mesh
Mesh: Hot dip galvanized 1/4'' x 1/4'' mesh
Wire: #23 gauge wire
Sheet width: 42'' high x 100 feet rolls
Supplied to United States

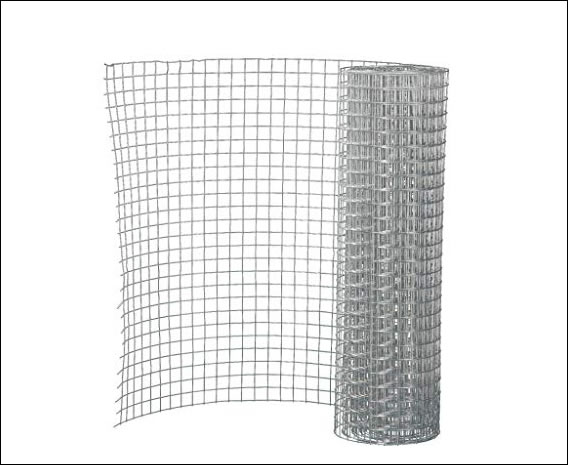

Hot dip Galvanized Welded Wire in 8 Mesh
Wire Hardware Cloth in 48 inches x 100 feet, supplied to USA

Mesh: 8 mesh - 1/8" opening
Wire: 27 gauge wire (0.017")
Rolls: 36 inch or 48" width, 100 foot length rolls.

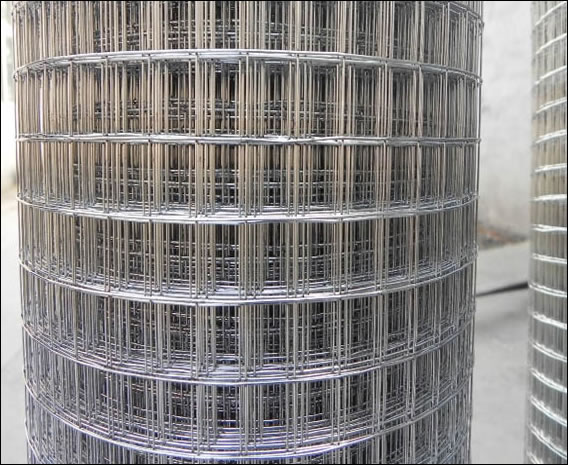

Hardware Mesh Cloth, Welded in 4 mesh x 20 gauge

Mesh: 4 x 4 mesh galvanised hardware mesh cloth

Wire: 20 gauge, hot dipped, 24 or 26 ga.

Rolls: 36 inch or 48 inch wide

Drawing reference in PDF

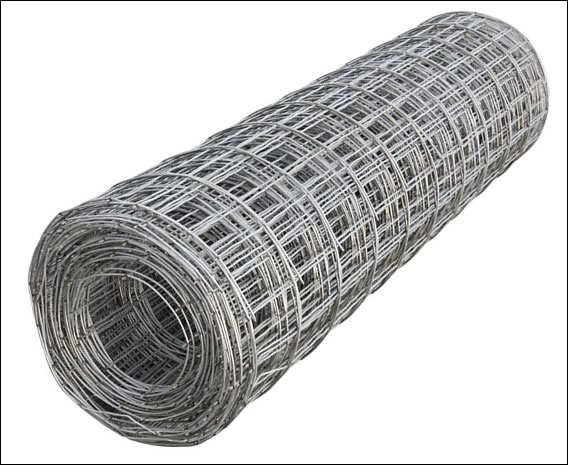

Hot Dip Galvanised After Welding Wire Mesh Rolls, 1 inch, 1/2 inch x 1 inch and 1/2 inch holes
Galvanized steel mesh supplied for UK
Hot dip galvanised after manufacture wire mesh.
All mesh sizes are measured as pitch (centre of wire to centre of wire) and all items must be supplied complete with cut flush edges all round.
All products are clean from excess oil and grease.
All products are with strong weld joints throughout.

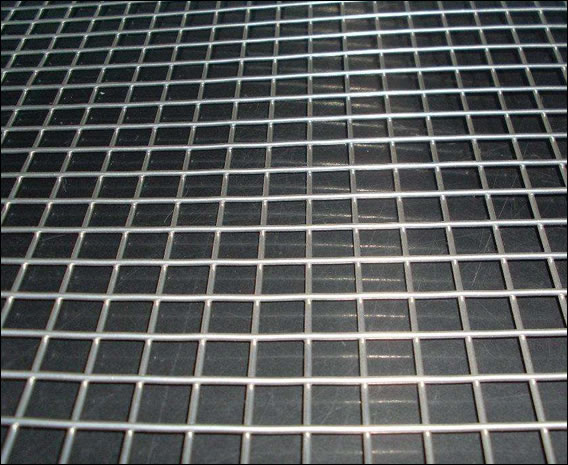

Hot Dip Galvanized Welded Mesh Hardware Cloth

A kind of Galvanised Hardware Cloth, manufactured with Hot dip zinc plating after welding.


Hot Dip Galvanised After Weld Wire Mesh (in Rolls and Panels) has better corrosion resistance than electro galvanized welded wire mesh. Can be further pvc or vinyl coated.
Common sizes for Hot dipped GALVANIZED HARDWARE CLOTH MESH include 2mesh, 3mesh, 4mesh, 5mesh, 6mesh, 8mesh, 12mesh, etc. Wire gauge covers 16,17, 23, 24, 25, 26.

Custom Service Available:
The mesh cloth is supplied in rolls or cut into pieces / panels.
Zinc coating amount, wire gauge, mesh opening, roll length and width, cut sheet sizes, can be custom produced.

Specifications Exporting to United Kingdom

Mesh Size Wire Diameter Roll Width Roll Length
½" x 1" 19swg (1.00 mm) 36" 30.0mtrs
½" x ½" 19swg (1.00 mm) 36" 30.0 mtrs
½" x ½" 16swg (1.60 mm) 36" 15/30 mtrs
1" x 1" 16swg (1.60 mm) 36" 30.0 mtrs

PRODUCTS MANUFACTURED AND SUPPLIED (Varieties with Hole Sizes), refer to photo illustration on the left.
